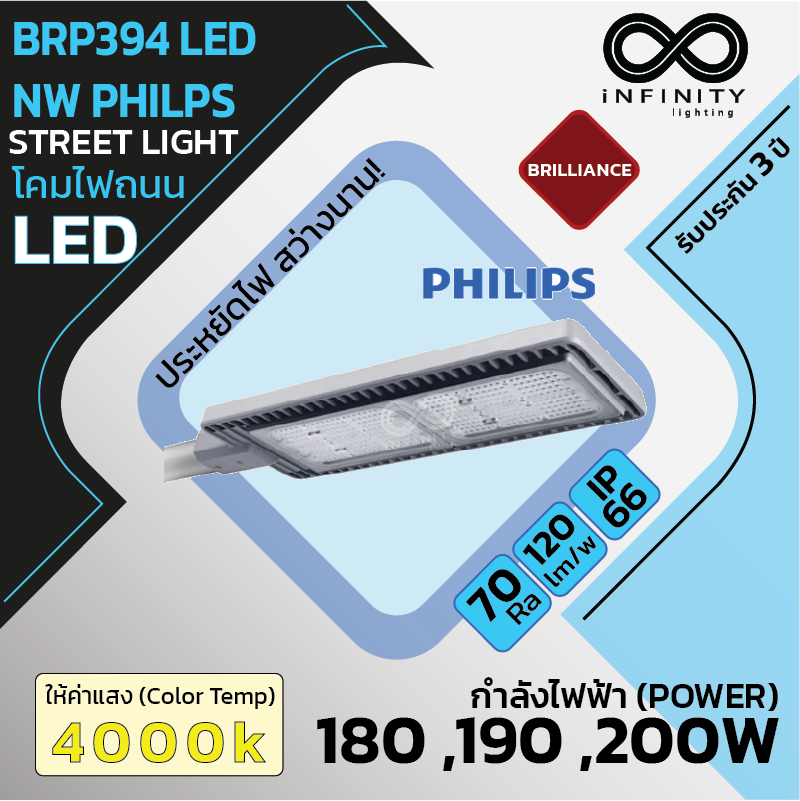

BRP394 LED240/NW 200W 220-240V DM

Designed for major and city roads, Philips RoadFlair is a new and exciting product set to brighten your streets beyond imagination. Smartly-designed to bring cities the highest savings possible with best-in-class lumen per watt, this road lighting production comes at a competitive price bound to excite. Philips RoadFlair brings energy efficiency, improves a city’s sustainability drive and delivers significant cost reduction in urban environments. The right road luminaire coupled with the right lighting application will create the best environment for your municipality, benefiting local communities and boosting tourism and businesses.

Description

Product data

General Information

Lamp family code : –
Light source colour : 740 neutral white
Light source replaceable : No
Number of gear units : 2 units
Driver/power unit/transformer : PSU [ Power supply unit]
Driver included : Yes
Optical cover/lens type : No [ -]
Control interface : –
Connection : No [ -]
Cable : –
Protection class IEC : Safety class I (I)
Flammability mark : NO [ -]
CE mark : CE mark
ENEC mark : –
Warranty period : 3 years
Outdoor optic type : –
Constant light output : No
Number of products on MCB : 5
LED engine type : LED

Light Technical

Upward light output ratio : 0
Standard tilt angle post-top : –
Standard tilt angle side entry : 0°

Operating and Electrical

Input voltage : 220 to 240 V
Input frequency : 50 to 60 Hz
Inrush current : 92 A
Inrush time : 0.44 ms
Power factor (min.) : 0.9

RoadFlair

Controls and Dimming

Dimmable : No

Mechanical and Housing

Housing material : Aluminum die-cast
Optic material : Polycarbonate
Optical cover/lens material : Polycarbonate
Fixation material : Aluminum
Mounting device : Side-entry for diameter 42 to 60 mm
Optical cover/lens shape : Ball, globular
Optical cover/lens finish : –
Overall length : 870 mm
Overall width : 295 mm
Overall height : 86 mm
Effective projected area : 0.25 m²
Colour : Gray

Approval and Application

Ingress protection code : IP66 [ Dust penetration-protected, jet-proof]
Mech. impact protection code : IK08 [ 5 J vandal-protected]

Initial Performance (IEC Compliant)

Initial luminous flux : 24000 lm
Luminous flux tolerance : +/-5%
Initial LED luminaire efficacy : 120 lm/W
Init. Corr. colour temperature : 4000 K
Init. colour rendering index : >70
Initial chromaticity : (0.433, 0.401) SDCM>5
Initial input power : 200 W
Power consumption tolerance : +/-5%

Over Time Performance (IEC Compliant)

Median useful life L70B50 : 100000 h

Application Conditions

Ambient temperature range : -30 to +50 °C
Maximum dimming level : Not applicable

Product Data

Full product code : 911401815398
Order product name : BRP394 LED240/NW 200W 220-240V DM
Order code : 911401815398
Numerator – quantity per pack : 1
Numerator – packs per outer box : 1
Material no. (12NC) : 911401815398
Net weight (piece) : 9.999 kg
