Description
Product data
General Information
Light source color : 865 cool daylight
Light source replaceable : No
Number of gear units : 2 unit
Driver/power unit/transformer : Power supply unit
Driver included : Yes
Optic type : Wide beam
Luminaire light beam spread : 110°
Connection : Flying leads/wires
Cable : Cable 0.3 m without plug
Protection class IEC : Safety class I
Glow-wire test : Temperature 650 °C, duration 5 s
Flammability mark : For mounting on normally flammable surfaces
CE mark : CE mark
ENEC mark : –
Warranty period : 3 years
Constant light output : No
Number of products on MCB of 16 A type B : 5
RoHS mark : –
Operating and Electrical
Input Voltage : 220-240 V
Input Frequency : 50 or 60 Hz
Inrush current : 65 A
Inrush time : 390 ms
Power Factor (Min) : 0.95
Controls and Dimming
Dimmable : No
Mechanical and Housing
Housing Material : Aluminum
Reflector material : –
Optic material : Polycarbonate
Optical cover/lens material : Polycarbonate
Fixation material : –
Optical cover/lens finish : Frosted
SmartBright Highbay G2

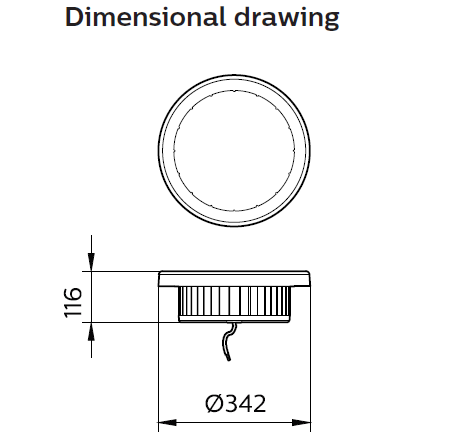

Overall height : 122 mm
Overall diameter : 342 mm
Color : Gray and gray
Approval and Application
Ingress protection code : IP20 [ Finger-protected]
Mech. impact protection code : IK03 [ 0.3 J]
Initial Performance (IEC Compliant)
Initial luminous flux (system flux) : 18000 lm
Luminous flux tolerance : +/-10%
Initial LED luminaire efficacy : 90 lm/W
Init. Corr. Color Temperature : 6500 K
Init. Color Rendering Index : ≥80
Initial chromaticity : SDCM<5
Initial input power : 200 W
Power consumption tolerance : +/-10%
Over Time Performance (IEC Compliant)
Median useful life L70B50 : 30000 h
Median useful life L80B50 : 25000 h
Median useful life L90B50 : 15000 h
Application Conditions
Ambient temperature range : -20 to +40 °C
Suitable for random switching : No
Product Data
Full product code : 871016331119700
Order product name : BY228P LED180/CW PSU EN
EAN/UPC – Product : 8710163311197
Order code : 911401821697
Numerator – Quantity Per Pack : 1
Numerator – Packs per outer box : 1
Material Nr. (12NC) : 911401821697
Net Weight (Piece) : 2.799 kg
